(ns lv.demo)
(use 'lv.core)

(layout "grid" [img0 img1]
               [img2 ras3])
; assume there are 4 PNG images in the media folder.
(image "flower-sampler/*.png")
(render)

; Do not modify the image.
; Copies red green and blue without modification from image c0.
(rgb :img0 [c0 c1 c2 c3]
  (rgb c0.rgb)
)

; Invert the blue channel.
(rgb :img1 [c0 c1 c2 c3]
  (r c0.r)
  (g c0.g)
  (b (- 1 c0.b))
)

; Mix two images,
; but use different blending calculations for each channel.
(rgb :img2 [c0 c1 c2 c3]
  (r (+ c2.r c0.r))
  (g (* c2.g c0.g))
  (b (- c2.b c0.b))
)

; Mix the output of node img0 and img1.
; Blending is controlled by the green channel of img0
; (img0 = the original unmodified image).
(rgb :ras3 [img0 img1]
  (rgb (mix img0.rgb
            img1.rgb
            img0.g))
)

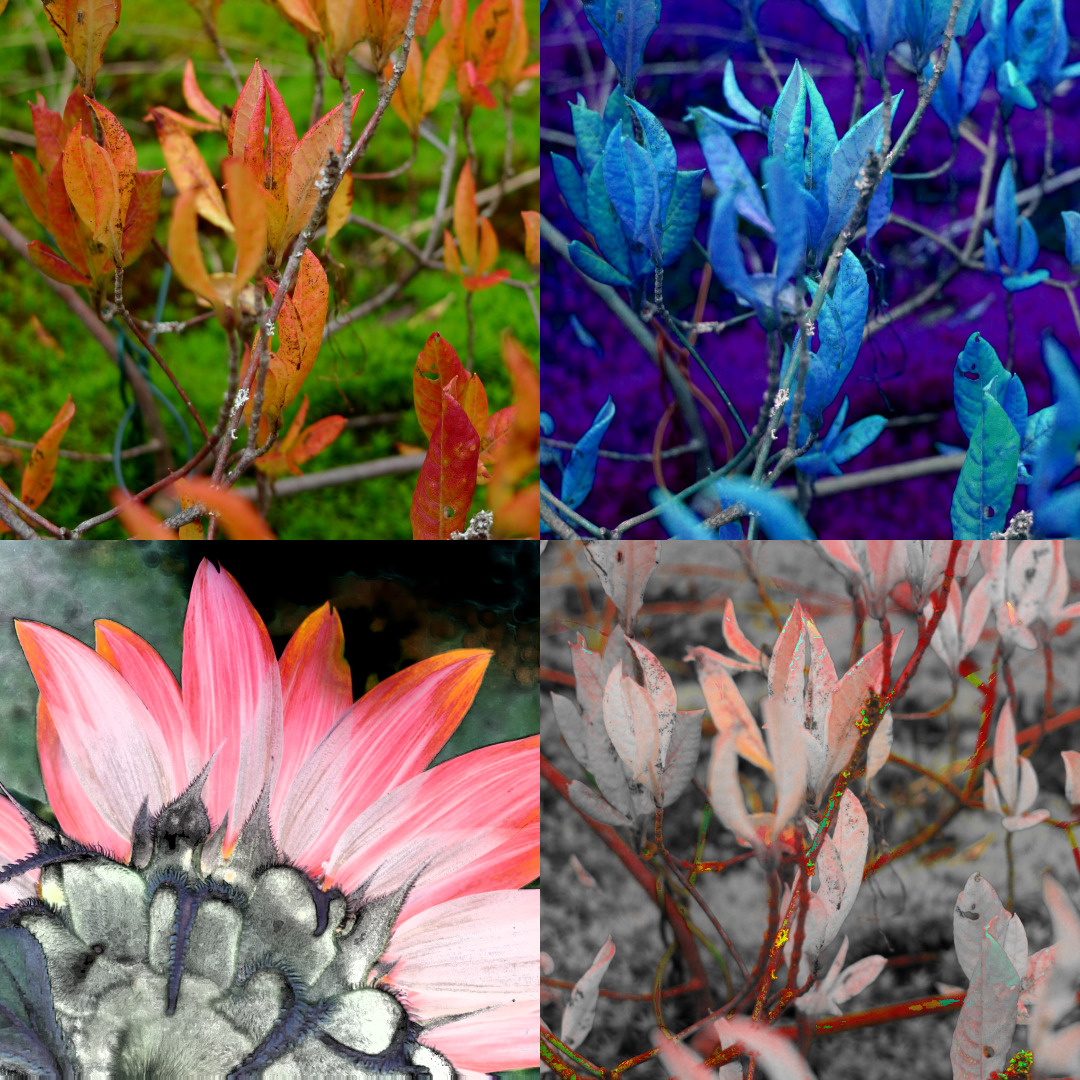

(ns lv.demo)
(use 'lv.core)

(layout "grid" [img0 img1]
               [img2 ras3])
; assume there are 4 PNG images in the media folder.
(image "flower-sampler/*.png")
(render)

; Do not modify the image.
; Copies hue, saturation and brightness
; without modification from image c0.
(hsv :img0 [c0 c1 c2 c3]
  (hsv c0.hsv)
)

; Invert the hue channel.
(hsv :img1 [c0 c1 c2 c3]
  (h (+ 0.5 c0.h))
  (s c0.s)
  (v c0.v)
)

; Exchange brightness and saturation channel.
(hsv :img2 [c0 c1 c2 c3]
  (h c2.h)
  (s c2.v)
  (v c2.s)
)

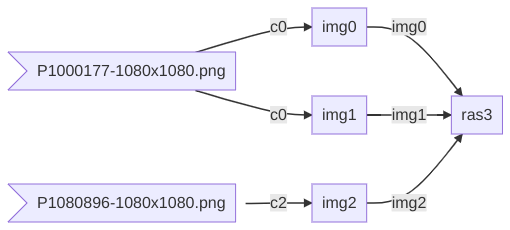

; Mix the output of node img0, img1 and img2.
; Playing with the equations.
(hsv :ras3 [img0 img1 img2]
  (h (* img0.h img1.h img2.h))
  (s (- 1 img1.s))
  (v img1.v)
)

(ns lv.demo)
(use 'lv.core)

(layout "grid" [img0 img1]
               [img2 ras3])
; assume there are 4 PNG images in the media folder.
(image "flower-sampler/*.png")
(render)

; Red, green and blue channels are assigned to hue, saturation and value.
(hsv :img0 [c0 c1 c2 c3]
  (hsv c0.rgb)
)

; Playing with the equations for HSV output.
; Inputs from two different images and different color models.
(hsv :img1 [c0 c1 c2 c3]
  (h (+ 0.13 c1.r c1.b))
  (s (* 0.64 c1.s))
  (v c1.g)
)

; Keep the hue channel.
; But patch saturation and value.
(hsv :img2 [c0 c1 c2 c3]
  (h c2.h)
  (s c2.b)
  (v c2.r)
)

; Mix the output of node img2 with itself.
; But use different color models.
(hsv :ras3 [img2]
  (hsv (mix img2.hsv img2.rgb 0.78))
)
