Color to Sound Panning

Convert position to stereo panning

Controlling stereo panning.

Animation

(ns lv.demo)
(use 'lv.core)

(layout "grid" [ras0 mov1]
               [ras2 ras3])

(movie "../../../timelapse/series/20210401-hirsch-1/hirsch-1.mkv")
(texpr
  ; use nanoKONTROL2 als input
  ; ks0    0.81102
  ; ks1    0.32283
  (t0 (- 1 (* 2 ks0)))
  (t1 (- 1 (* 2 ks1)))
)

(hsv :ras0 []
  (v (+ (pow (- 1 (abs (+ x (snoise y (* 0.011 f))))) 8)
        (pow (- 1 (abs (+ x (snoise y (* 0.023 f))))) 2)))
)

(hsv :mov1 [c0]
  (sy 1.42)
  (s 0.2)
  (h (+ c0.h 0.5))
  (v (- 1 (- c0.v r)))
)

(hsv :ras2 [ras0 ras2]
  (v (mix (max ras2.v 0) (sqr ras0.v) kp7))
)

(hsv :ras3 [mov1 ras2]
  (s (max 0 (- 0.7 r)))
  (h mov1.h 0.5)
  (v (* (sqr mov1.v) ras2.v))
)
(render 3)

(inspect [ras3]
  "color2sound/analyse_dualhead_color.cl"
  (channels 2)
  (x0 (* 1.7 (snoise (* 0.0051 f) 0.1 0.2)))
  (y0 t0)
  (r0 ks7)

  (x1 (* 1.7 (snoise (* 0.0053 f) 0.5 0.6)))
  (y1 t1)
  (r1 ks7)
)

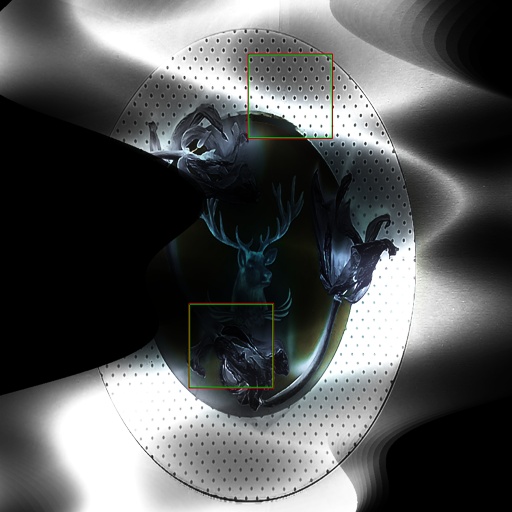

The graphic animation is sampled at 2 moving areas. The x-position values of these areas are used to move the sound between both speakers.

SuperCollider

s.waitForBoot({

  SynthDef(\AudioMix,
    { | out = 0,
        cutlpf = 440,
        v_value=0.1,
        pan = 0 |
      var snd1 = MoogLadder.ar(
                Mix(LFSaw.ar([60, 90, 120, 185], 0, 0.33)),
                LinExp.kr(v_value, 0, 0.2, 180, 1500),
                0.75);
      var rev1 = JPverb.ar(
        snd1,
        \t60.kr(1,           0.05),
        \damp.kr(1,          0.05),
        \size.kr(1,          0.05),
        \earlydiff.kr(0.707, 0.05),
        \mdepth.kr(5,        0.05),
        \mfreq.kr(2,         0.05),
        \lowx.kr(1,          0.05),
        \midx.kr(1,          0.05),
        \highx.kr(1,         0.05),
        \lowband.kr(250,     0.05),
        \highband.kr(1000,   0.05)
      );
      var lpf1 = LPF.ar(Mix([snd1*1.0, rev1*3.0]), cutlpf);

      Out.ar(out, [lpf1*LinLin.kr(pan, -1, 1, 1, 0),
                   lpf1*LinLin.kr(pan, -1, 1, 0, 1)]);
  }, \kr!4).add;

  0.5.wait;
  ~toppos  = Synth.new(\AudioMix,
                       [ \out, 0,
                         \cutlpf, 600]);
  ~botpos = Synth.new(\AudioMix,
                      [ \out, 0,
                        \cutlpf, 480]);

  h.free;
  h = OSCFunc({ |msg, time, addr, recvPort|
    // from area x0
    ~toppos.set(\pan, msg[2]);
    ~toppos.set(\v_value, msg[7]);

    // from area x1
    ~botpos.set(\pan, msg[8]);
    ~botpos.set(\v_value, msg[13]);
  }, '/f_hsb4c');

  q.free;
  q = OSCFunc({ |msg, time, addr, recvPort|
    // stop
    [time, msg].postln;
    s.quit;
    0.exit;
  }, '/f_collider/quit');

});

OpenCL color sampler

#pragma OPENCL EXTENSION cl_khr_global_int32_base_atomics : enable

const sampler_t SAMPLER = CLK_NORMALIZED_COORDS_FALSE | CLK_ADDRESS_CLAMP_TO_EDGE | CLK_FILTER_LINEAR;

__kernel void image_analysis(__read_only image2d_t image1,
                             __global int * inparams,
                             __global int * result)
{
    int px = get_global_id(0);
    int py = get_global_id(1);
    int dist0 = inparams[2];
    if(   (px >= inparams[0]-dist0)
       && (px <= inparams[0]+dist0)
       && (py >= inparams[1]-dist0)
       && (py <= inparams[1]+dist0)) {
        int2 pos = (int2)(px, py);
        float4 color = read_imagef(image1, SAMPLER, pos);
        atomic_add(&result[0], 32768*fmax(0.0f, color.x));
        atomic_add(&result[1], 32768*fmax(0.0f, color.y));
        atomic_add(&result[2], 32768*fmax(0.0f, color.z));
        atom_inc(&result[3]);
    }
    int dist1 = inparams[5];
    if(   (px >= inparams[3]-dist1)
       && (px <= inparams[3]+dist1)
       && (py >= inparams[4]-dist1)
       && (py <= inparams[4]+dist1)) {
        int2 pos = (int2)(px, py);
        float4 color = read_imagef(image1, SAMPLER, pos);
        atomic_add(&result[4], 32768*fmax(0.0f, color.x));
        atomic_add(&result[5], 32768*fmax(0.0f, color.y));
        atomic_add(&result[6], 32768*fmax(0.0f, color.z));
        atom_inc(&result[7]);
    }
}
